Series 2
The Legacy System has its origin from 1990s
and although no longer in production
components are still available.

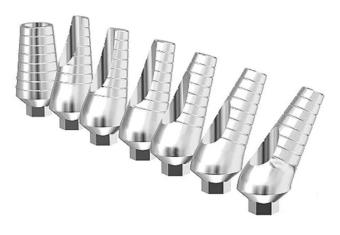

Low Profile Abutment
Abutment range that can correct
angles in the multiple vertical planes
Fabricated from titanium alloy the low profile
angled abutments come in one diameter that
matches all three Ezeeplant Series 2 diameters.
Vertical Plane Correction - is possible from 0 to
30 degrees in 5 degree steps (0, 5, 10, 15, 20,
25, and 30 degrees) in 7 pre-angles variants.
Larger 4,5mm diameter and angular correction
above 30 degrees may be supplied subject to
availability.
Order Code: PT or PTs (followed by degree)

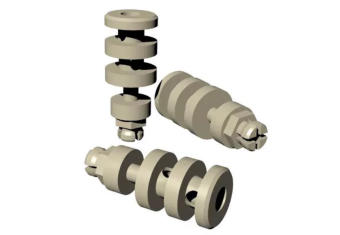

Click-in Top Transfer
A transfer impression coping used in
the closed tray technique.
The Click-in top is available in one size and is
compatible with all four sizes of Click-in base and is
used in a closed tray impression technique.
Order Code: CT

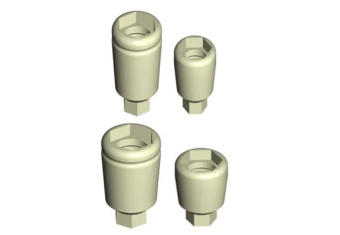

Click-in Bases
Transfer bases that act also as healing
abutments.
Available in four sizes, the Click-in Bases are
interchangeable with all 3 diameters of Series 2
implant and are used in combination with the Click-
in top transfer.
Fabricated from biocompatible plastic the screw
retained Click-in Bases are available in 3.75mm and
4.5mm diameters that fit all implant diameters.
Available in two lengths long and short, the longer
Click-in Base is identifiable by a small
circumferential groove at the top edge.
3.75mm Click-in Base short. Order Code: CB3
3.75mm Click-in Base long. Order Code: CB3L
4.50mm Click-in Base short. Order Code: CB4
4.50mm Click-in Base long. Order Code: CB4L
Many Series 2 implants have been successfully placed and restored over thirty years. During this time there have been numerous changes
and developments in the field of implantology which have been incorporated in to the latest system. The earlier system is still supported so
that patients can continue to enjoy the benefits of the Legacy System. This section has details about the restorative components still available
for the Legacy System.
Universal Analogue
An implant replica used to fabricate
analogue models
A single size titanium implant replica which
matches all implant diameters simplifying
ordering and laboratory procedures.
The tapered tail section reduces the possibility of
interference occurring between analogues due to
conflicting angles. A small diameter also means
that analogue break out or model show through is
avoided. The shorter length means that the base
of the analogue model can be trimmed without
the worry of exposing and cutting into the
analogue making articulator mounting easier.
Order Code: UA
